by **bulletproofbob** » Thu Aug 27, 2009 10:36 pm

what day you going?? i'm working till 1.30 every day this weekend... and may be off to the coast (after work) one of them...

Website · by **owelly** » Sun Aug 30, 2009 9:09 pm

I done piccies!!!
See here:

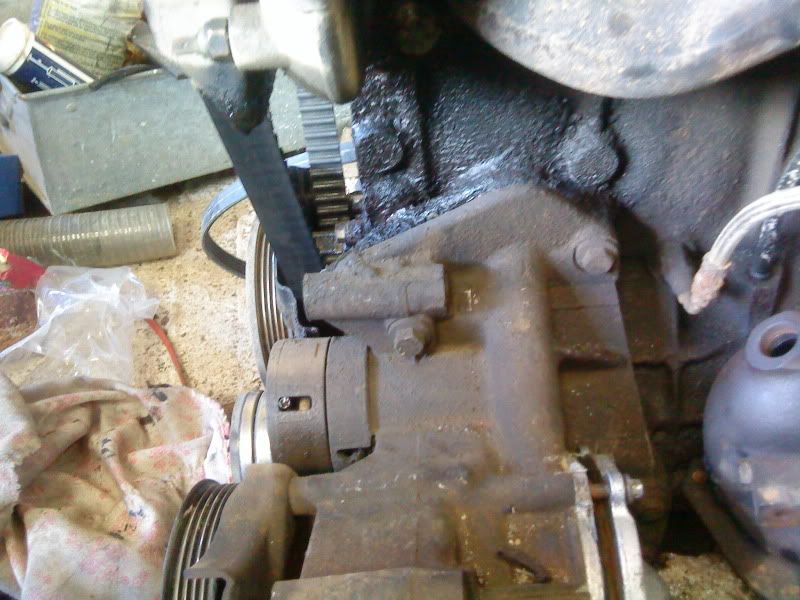

This is the power steering pump and water pump unit. It's a feck-off heavy thing and it bolts over the missing core plug as thought.

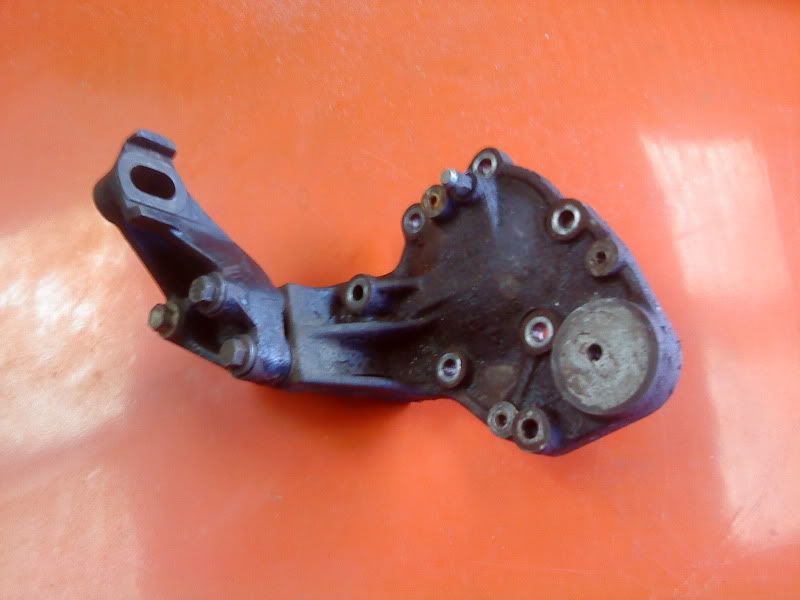

This engine mount:

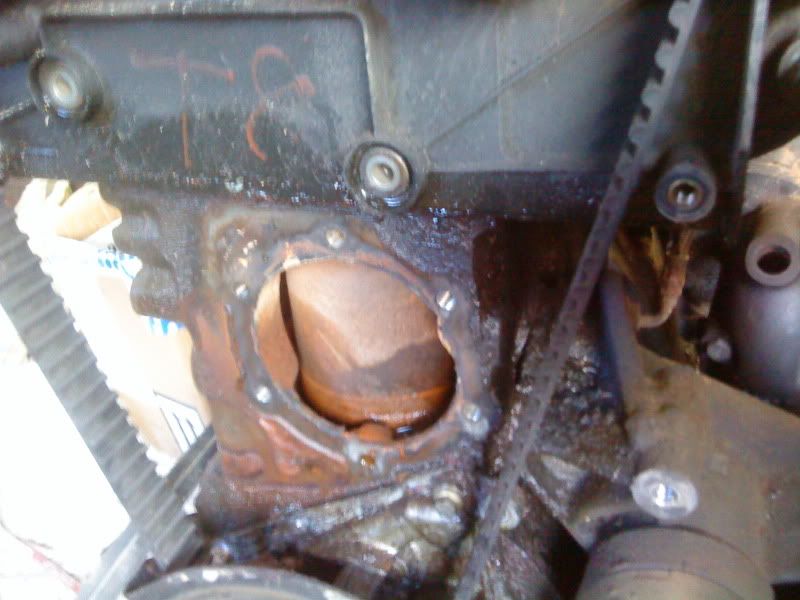

Bolts to the end of the engine betwixt the cam belt and covers the old waterpump hole, thus:

So, where does the K series hang from? If we still need the mount at that end, we'll hack the PAS pump off and cobble a water pump back on but if the engine doesn't need that mount, we need to find a water pump to fit over the water pump hole!! Job jobbed!

Website · by **owelly** » Sun Aug 30, 2009 9:23 pm

Well get your spindley twiggy feeble little corpse under that MGF and have a fekin look.......don't make me come over to have a look!!

by **Jaffa** » Sun Aug 30, 2009 9:38 pm

seems that the mgf has an engine mount below the cam wheel thingys

by **Jaffa** » Sun Aug 30, 2009 10:06 pm

The manual i have shows the water pump on the 600 on the front of the block also

by **Jaffa** » Sun Aug 30, 2009 10:18 pm

I stand corrected, that must be the honda engined ones.

by **Jaffa** » Sun Aug 30, 2009 11:12 pm

Think i have got my head around it now.

The water pump housing is a cast ally unit that has the water pump in the enf bit, but aslo carries the power steering pump and pullys. It loks like the powersteering pump can just be unbolted.

I am right? do i win a biscuit ?

by **hillbillyracer** » Mon Aug 31, 2009 12:55 am

I'm not sure about the two pumps you've linked to there but you should take a look at the M series water pump. I can't just remember exactly how it all goes but they use a casting bolted to the conventional water pump hole in the end of the block, this extended to the opposite side to the T series pump (rear in your case) & the pump bolted to this casting where it was driven off the cambelt. This made for a much tidier set-up & had the engine mounting in a similar location to the T series you want to use & the K series the car currently has.
However I did take a quick look at using this M series type pump on the T series with my grasser so I could use the T series which was becoming more common in the scrappy but it was'nt a straight bolt on job as the locations for the tensioners for the M series type cambelt wer'nt there on the T series but thought it was a possibility all the same.

by **hillbillyracer** » Mon Aug 31, 2009 1:04 am

Looking again at the pics of those pumps you've linked to it does look like the PAS pump just unbolts, but that it's needed for the drive for the water pump as it looks like the waterpump is driven off the back of the PAS pump.
It also looks like one of the sellers is gonna get a right kick up the harris from his missus cos he's made a right mess of the carpet!

by **Jaffa** » Mon Aug 31, 2009 10:37 am

Yep, i was thinking that. Abouit the carpet that is , not the pump.

Looks like the belt does go round the pas pump pulley before it get to the water pump pulley

by **Jaffa** » Mon Aug 31, 2009 10:53 am

Website · by **owelly** » Mon Aug 31, 2009 8:25 pm

That pulley in the middle is the tensioner. The waterpump lives on the end of the PAS pump.

by **Jaffa** » Mon Aug 31, 2009 9:23 pm

http://www.rovertech.net/forum/viewtopi ... 0&t=103677

this link is for a bloke that put the T16 in a metro.

had a minor problem wuth the oil filter not fitting, so had to blank it off and drill and tap a new takeoff.

by **Village** » Thu Sep 03, 2009 10:53 am

<blockquote id="quote">quote:<hr height="1" noshade id="quote">Originally posted by owelly
 I done piccies!!!
See here:

This engine mount:

<hr height="1" noshade id="quote"></blockquote id="quote">

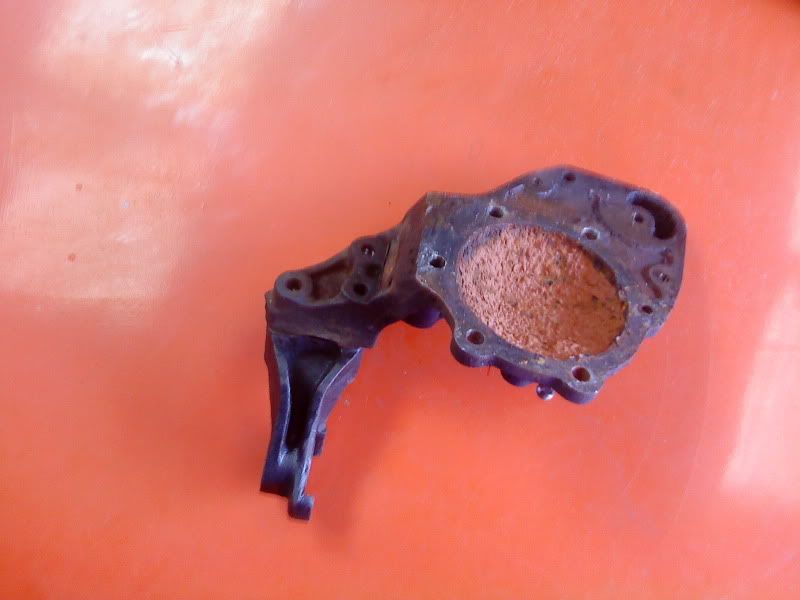

Why is the back of the engine mount full of builders sand?

by **Jaffa** » Thu Sep 03, 2009 5:03 pm

Its either s small pixie sand pit or the rusty casting core plug cover
